Home New Bikes TVS Raider TVS Raider Drum
  • TVS Raider Drum
    Rs. 84,450*
    Ex-Showroom in in Amritsar
    Get April Offers

    Overview of TVS Raider Drum

    TVS Raider Drum General Features
    Engine Type Air and Oil Cooled Single Cylinder, SI
    Top Speed -
    Engine Capacity -
    Starting -
    Brakes Disc
    Gear Box 5 Speed
    Fuel Tank Capacity 10 L
    Tyre Type Tubeless
    TVS Raider Drum Standard Features
    Brakes
    Pass Switch
    Cooling System
    ABS
    CBS
    Ebs
    Body Graphics
    Carry Hook
    Shutter Lock

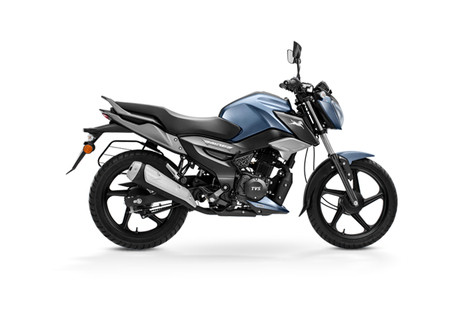

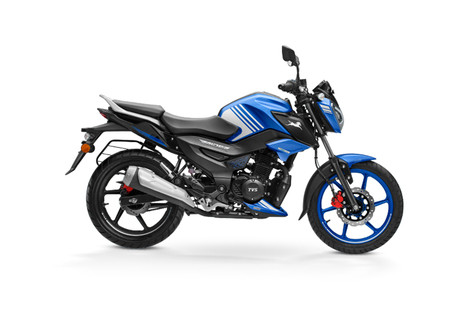

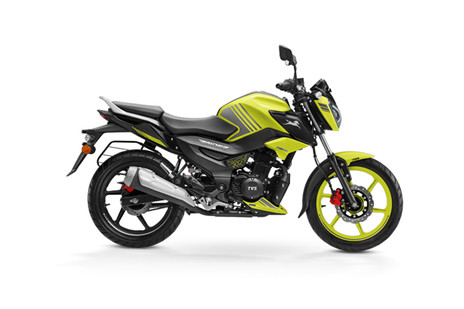

  • Available Colors of TVS Raider Drum

  • TVS Raider Drum Pictures

  • TVS Raider Drum Specification

    TVS Raider Drum Engine & performance
    Engine Type Air and Oil Cooled Single Cylinder, SI
    Displacement (CC) 124.8
    Mileage (KM/L) -
    Bore 53.5 mm
    Stroke 55.5 mm
    Compression Ratio -
    Maximum Power 11.38 PS @ 7500 rpm
    Maximum Torque 11.2 Nm @ 6000 rpm
    Starting Self Start Only
    Maximum Speed -
    TVS Raider Drum Transmission
    Gear Box 5 Speed
    Clutch Wet Multi Plate Type
    Transmission Type Manual
    TVS Raider Drum Fuel
    Fuel Capacity 10 L
    Supply System -
    Fuel Reserve -
    Fuel Gauge Digital
    Digital Fuel Gauge -
    TVS Raider Drum Brake
    Brakes Disc
    Front Brake Disc
    Rear Brake Drum
    TVS Raider Drum Tyre Size
    Tyre Size

    Front :-80/100 - 17,

    Rear :-100/90 - 17
    Radial Tyres -
    TVS Raider Drum Wheel Size
    Wheel Size

    Front :-431.8 mm,

    Rear :-431.8 mm
    Wheel Base 1326 mm
    TVS Raider Drum Chassis and Suspension
    Bike Suspension -
    TVS Raider Drum Frame
    Chassis/ Frame -
    TVS Raider Drum Electrical
    Ignition Electronic Control Unit
    Battery Type -
    Head Lamp -
    Tail Lamp -
    Turn Signal Lamp Bulb

  • TVS Raider Drum Features

  • TVS Raider Drum Details

    TVS Raider Drum Details

  • TVS Raider Drum Dimensions

    TVS Raider Drum Exterior Dimensions
    Length (mm) 2070 mm
    Height (mm) 1028 mm
    Width (mm) 785 mm
    Ground Clearance (mm) 180 mm
    Saddle Height -
    Kerb Weight 124 kg
    Total Weight 253 kg
    Weight Carrying Capacity 130 kg
    Chassis/ Frame -
    Wheel Base 1326 mm

  • Disclaimer : View shown is for top variant and actual accessories / fitment may vary across variants
